Introduction
In the field of all-terrain vehicles, UTV (Utility Task Vehicle) faces high-intensity operation scenarios all the year round.Heavy-duty traction, complex and rugged road conditions, muddy ice, snow and dust environment, and day-to-day high-frequency tasks continue to test the core performance and stability of the vehicle.For professional operation users, the selection of transmission system directly determines the operation efficiency, failure rate and service life of UTV.
The 800cc gasoline UTV is the mainstream model in the fields of engineering, agriculture and outdoor operation.This model offers the perfect balance of power output, torque performance and purchase price/performance for everyday use and difficult road conditions.Among the many configurations, the shaft drive system is the core configuration to distinguish the entertainment UTV from the professional heavy-duty UTV, and it is also the key parameter to be considered by the heavy-duty users.
Most entry-level and entertainment-level UTVs on the market are generally equipped with CVT belt drive system, which relies on belt to realize power transmission, with simple structure and lower cost.However, the belt is a wearing part, which is easy to slip, overheat, aging and fracture under heavy load, high temperature and harsh environment. Frequent maintenance and replacement not only increases the cost, but also directly interrupts the operation progress.
The shaft drive system adopts the structure of closed oil lubrication transmission shaft with gear differential, which completely abandons the short board of belt easy to wear.The whole set of transmission structure is sealed and protected, runs stably, can output constant torque under continuous heavy load state, and has no slip and overheating failure risk.
The mainstream 800cc gasoline UTV is equipped with V-shaped double-cylinder engine, with the maximum power of more than 50-65 horsepower and excellent low speed torque performance. It is the main operation equipment for farm breeding, land reclamation, outdoor hunting and light engineering construction.For such high-frequency and high-intensity professional scenarios, the shutdown loss caused by belt drive failure is much higher than the maintenance cost of the equipment itself, and the shaft drive system can solve this pain point from the root.
This paper will deeply analyze the working principle and core advantages of 800cc gasoline UTV shaft drive system, compare the performance differences between belt and chain drive, adapt to industry scenarios, purchase points and maintenance skills, and help users fully understand why shaft drive is the optimal solution of 800cc gasoline UTV under heavy load conditions.
What is the UTV shaft drive system?Core principles and structure elucidation
The shaft drive system is a mechanical power transmission structure designed for heavy duty operation and is the core drive solution of industrial grade UTV.Through integral or universal joint metal transmission shaft, the torque output by engine and gearbox is directly transmitted to gear differential of front and rear wheels, and finally the vehicle is driven.
Different from the open structure of belt drive and chain drive, the shaft drive system adopts the combination design of precision machined gear, universal joint and closed oil bath shell.The whole structure is completely closed, the whole process is lubricated by oil, the operation process is not interfered by the external environment, and the stable, low-loss and high-durability power transmission is realized.
Work flow of 800cc gasoline UTV shaft transmission system
The shaft drive system of the mainstream 800cc gasoline UTV adopts the mature combination mode of “CVT variable speed + shaft drive final drive,” giving consideration to the flexibility of variable speed and the stability of heavy load. The specific work process is divided into three steps:
3.1 Engine power output
The water-cooled V-type double-cylinder 800cc gasoline engine equipped with the vehicle can output abundant low-speed torque, provide core power support for heavy-load traction and complicated road conditions, and adapt to various high-intensity operation scenarios.
3.2 CVT stepless speed regulation
The power output by the engine is firstly transmitted to the CVT gearbox, and the transmission ratio is automatically adjusted according to the load weight and road condition gradient through the stepless speed change structure.The design solves the problem of stiff speed change of the traditional shaft drive, and gives consideration to the starting smoothness and the working condition adaptability.
3.3 Transmission of final drive force to propeller shaft
After variable speed regulation of power, through the chassis of high strength metal shaft, transmitted to the front and rear wheel enclosed gear differential.The gear oil inside the differential is lubricated and cooled in the whole process, and the torque is evenly distributed to the axle and the wheels to complete power output.
The whole set of transmission system is of totally enclosed structure, and silt, accumulated water and dust cannot invade the internal core components.Daily maintenance does not need frequent replacement of worn parts, but only needs regular replacement of gear oil, greatly reducing long-term operation and maintenance pressure.
Core comparison of shaft drive, CVT belt drive and chain drive
At present, the mainstream transmission modes of UTV are divided into three types, namely shaft transmission, CVT belt transmission and chain transmission. The adaptation scenario, durability and maintenance cost of the three are greatly different, especially for 800cc heavy-load working condition, the performance gap is especially obvious.
Feature | Shaft Drive | Chain Drive |
Power Transmission | Direct via enclosed gears and shafts; minimal slippage | Efficient sprocket-to-chain; low power loss |
Durability | Excellent in harsh, sustained conditions | Good but vulnerable to debris, stretching, and corrosion |
Maintenance | Very low (gear oil changes) | High (regular cleaning, lubrication, tensioning) |
Weight | Heavier (adds to overall vehicle mass) | Significantly lighter |
Noise & Cleanliness | Quiet and clean | Noisier and messier (throws grease/dirt) |
Repairability | More complex/expensive if major failure occurs | Easier field repairs with basic tools |
Best Applications | Heavy towing, utility work, long hours in mud/snow | Sport-oriented riding, lighter-duty trails |
The core components of the shaft transmission system
The ultimate durability of the shaft drive comes from a solid core component configuration, each of which is optimized for heavy duty:
5.1 High strength drive shaft
It is made of thickened steel pipe, with universal joint and CV joint structure, which can adapt to the suspension expansion and bumping deformation of the body, so as to avoid the deformation and fracture of the transmission shaft during driving.
5.2 Professional differential
Equipped with open, limited slip or locking gear differential, it can automatically distribute the power of four wheels according to the road condition, improve the grip and trafficability of complex terrain, and eliminate the slip and idling of single wheel.
5.3 Closed gear oil bath system
Internal gears are completely immersed in special gear oil for continuous lubrication, cooling and rust prevention, reducing gear wear and greatly prolonging the service life of the transmission system.
Why is shaft drive the gold configuration of 800cc heavy-duty gasoline UTV?Four core strengths
The 800cc gasoline UTV has become the mainstream model for commercial operation with its moderate body size, strong low torque and ultra-high scene adaptability.With the shaft transmission system, the vehicle completely gets rid of the short board of traditional transmission structure and becomes professional equipment that is truly suitable for all-weather and high-intensity operation. The core advantages are concentrated in four aspects.
6.1 Overload condition super durable, put an end to power failure
In professional operation scenarios, the 800cc UTV often needs to tow more than 1,000 – 2,000 pounds of cargo, pass through mud, gravel, uneven road conditions with full load, and operate at low speed and high load for long periods of time.This type of operation causes a great loss to the transmission system, which is a “fatal scene” of belt transmission.
Under the condition of continuous heavy load and high temperature, CVT belt will quickly appear glazing, relaxation and slipping problems, and in serious cases, it will break directly, resulting in vehicle shutdown.and that shaft drive is driven by a solid steel transmission shaft and a hard gear, and has no flexible and damageable part, so that skidding failure is eliminate from the root.
According to a large number of actual operation data of the fleet, the shaft transmission 800cc UTV with standard maintenance can stably operate for more than 3000 hours without failure.In contrast, the belt transmission model under the same working condition needs to replace the belt for many times, and the failure rate and shutdown rate are significantly higher.
6.2 Lower maintenance costs, long-term cost performance far exceeds traditional transmission
Many users mistakenly think that the purchase cost of shaft drive models is higher and the comprehensive cost performance is lower, but from the perspective of long-term service life, shaft drive can help users save a lot of maintenance and downtime costs.
Belt drive models need to replace the belt every 500-800 hours under severe working conditions, and the cost of purchasing and replacing a single belt is between US $120 -220. The replacement cost for long-term and high-frequency use is considerable.Chain drives require weekly cleaning, lubrication, and tension adjustment, which is time-consuming, labor-intensive, and high maintenance barriers.
The shaft transmission system adopts a fully enclosed structure, which is waterproof, mudproof and sandproof, and the internal gear oil is not easy to pollute and deteriorate.Only the gear oil needs to be replaced periodically on a daily basis, without frequent inspection and replacement of accessories, which greatly reduces the maintenance time and consumable cost, and avoids the operation stagnation loss caused by sudden failure.
6.3 Stable performance in harsh environments and always controllable power output
Farmland, forest area, construction site, field mountain and other operation scenarios, the environment is complex and changeable, ponding, silt, dust and gravel may damage the vehicle transmission structure at any time, affecting the operation stability.
The shaft transmission closed structure can comprehensively protect the internal core components, and the problems of water inflow, sand inflow, rust and jamming of the components will not occur when the components pass through accumulated water, run in muddy environment and operate in sand-dust environment.It can output uniform and controllable power no matter low-speed winch operation, rock climbing or heavy-duty uphill.
At the same time, the shaft transmission will not be like a belt with the temperature rise in performance attenuation, long-term continuous operation temperature stability, power output fluctuation.With the four-wheel drive locking differential, the vehicle’s ability to get out of trouble and road adaptability are greatly improved, which is perfectly suitable for various extreme operation scenarios.
6.4 Less vibration during operation, more comfortable for long-term operation
the traditional belt and chain transmission is easy to generate jitter, abnormal sound and vibration in that run process, and fatigue of operator is easily caused by long-time driving, so that the working efficiency is affect.
The shaft transmission system has symmetrical structure and balanced transmission, and the closed gear meshing operation is stable, so that the vibration and noise of the transmission system are effectively reduced.It can greatly improve driving and riding comfort and reduce operation fatigue in all-day continuous operation, long-distance patrol inspection and field commuting scenes.
Shaft Drive VS Chain Drive: How to Choose Heavy-duty UTV?
In UTV transmission scheme, shaft transmission and chain transmission are two hard core mechanical transmission modes, which are difficult to distinguish when many users choose and buy.The core difference between the two lies in the design positioning. The chain drive focuses on lightweight and flexibility, while the shaft drive focuses on stability and durability. The adaptation scenarios are quite different.
7.1 Comprehensive performance comparison
In terms of dynamic performance, the initial transmission loss of chain transmission is small and the response is sensitive, but the problems of chain stretching, loosening and chain detachment will occur during long-term heavy-load use, and the dynamic stability continues to decline.Shaft drive relies on gear rigid transmission, the torque is constant, no performance attenuation, heavy load advantage is obvious.
In terms of durable protection, the chain is of open structure, so sediment and gravel are easy to get stuck in the gap of the chain, resulting in wear, rust, jamming and high failure rate in harsh environment.Shaft drive fully enclosed design, protective pull full, fear of complex outdoor conditions, the service life is far beyond the chain drive.
In maintenance and use, chain transmission needs high-frequency cleaning, oiling and tightening, and long-term maintenance is time-consuming and labor-consuming.Shaft drive requires only regular gear oil replacement, almost maintenance-free, suitable for unmanned high-frequency commercial operation scenarios.
For emergency maintenance, the chain structure is simple, equipped with basic tools and spare parts can be quickly repaired in the field.The shaft drive structure is precise and the failure probability is extremely low, but once a problem occurs, the maintenance process is more complicated and the requirements for tools and technology are higher.
7.2 Shaft drive is preferred for heavy-duty scenes, and chain drive is adapted for lightweight play
For the core commercial scenario of the 800 cc gasoline UTV, shaft drive is absolutely preferred.Farm breeding, land reclamation, engineering operation, outdoor patrol inspection and other scenarios, the core requirements are stable, non-stop, low maintenance, shaft transmission perfect fit.
The chain drive is only suitable for lightweight entertainment scenarios such as short off-road weekends, recreational rides, and light road traffic.This kind of scene operation time is short, the load is small, does not need the long-term stability, the chain transmission light weight, the high flexibility advantage can give full play to.
On the whole, as long as it is mainly used in professional heavy load, high frequency operation and harsh environment, the comprehensive value of shaft transmission far exceeds that of chain transmission. The price difference of car purchase in the early stage can be quickly recovered through low maintenance and zero downtime in the later stage.
Four core industries!Which scenarios are most dependent on the shaft drive 800 cc UTV?
The shaft drive 800 cc petrol UTV is not a recreational ride, it’s a professional productivity tool.In many outdoor operation and commercial service industries, it has become an indispensable core equipment with high stability, low failure and strong adaptability, mainly adapting to four fields.
8.1 Agricultural farming and pasture farming
Agriculture and pasture are the most widely used scenarios for 800 cc UTV, which requires daily high-frequency operations such as feed traction, fence inspection, pesticide spraying, livestock transfer, site cleaning, etc.
The field pasture is dusty and muddy all the year round, and the road condition is uneven. In addition, all-weather continuous operation is required in busy farming season, which requires extremely high stability of vehicles.The shaft transmission system is not afraid of dust and muddy water in the field, and does not slip or malfunction during heavy-load traction, so as to avoid the delay of agricultural progress due to equipment shutdown in busy farming season.
8.2 Forest land conservation and land management
Forestry management and protection, wasteland renovation, ecological patrol inspection, footpath maintenance and other works are mostly carried out on remote unpaved roads, with complex road conditions, inconvenient maintenance and supply, and vehicle reliability is the first core requirement.
The shaft drive 800 cc UTV is durable, long in maintenance, and has a low failure rate, allowing long-term stability in mountains, wasteland, and gravel roads.meanwhile, that operation noise is low, the field ecological environment can not be disturb, and the requirements of professional management and protection work are met.
8.3 Light engineering and infrastructure maintenance
Light engineering scenarios such as material transfer on construction site, equipment handling, site patrol inspection, road maintenance, etc. require vehicles with strong load, strong trafficability and high stability.
The constant low-torque output of the shaft drive system can easily meet the requirements of heavy-duty handling and slope driving on the construction site.The closed structure can resist the erosion of soil, gravel and sewage on the construction site, greatly reduce the operation and maintenance cost of engineering vehicles, and is suitable for high-frequency and high-intensity operation on the construction site.

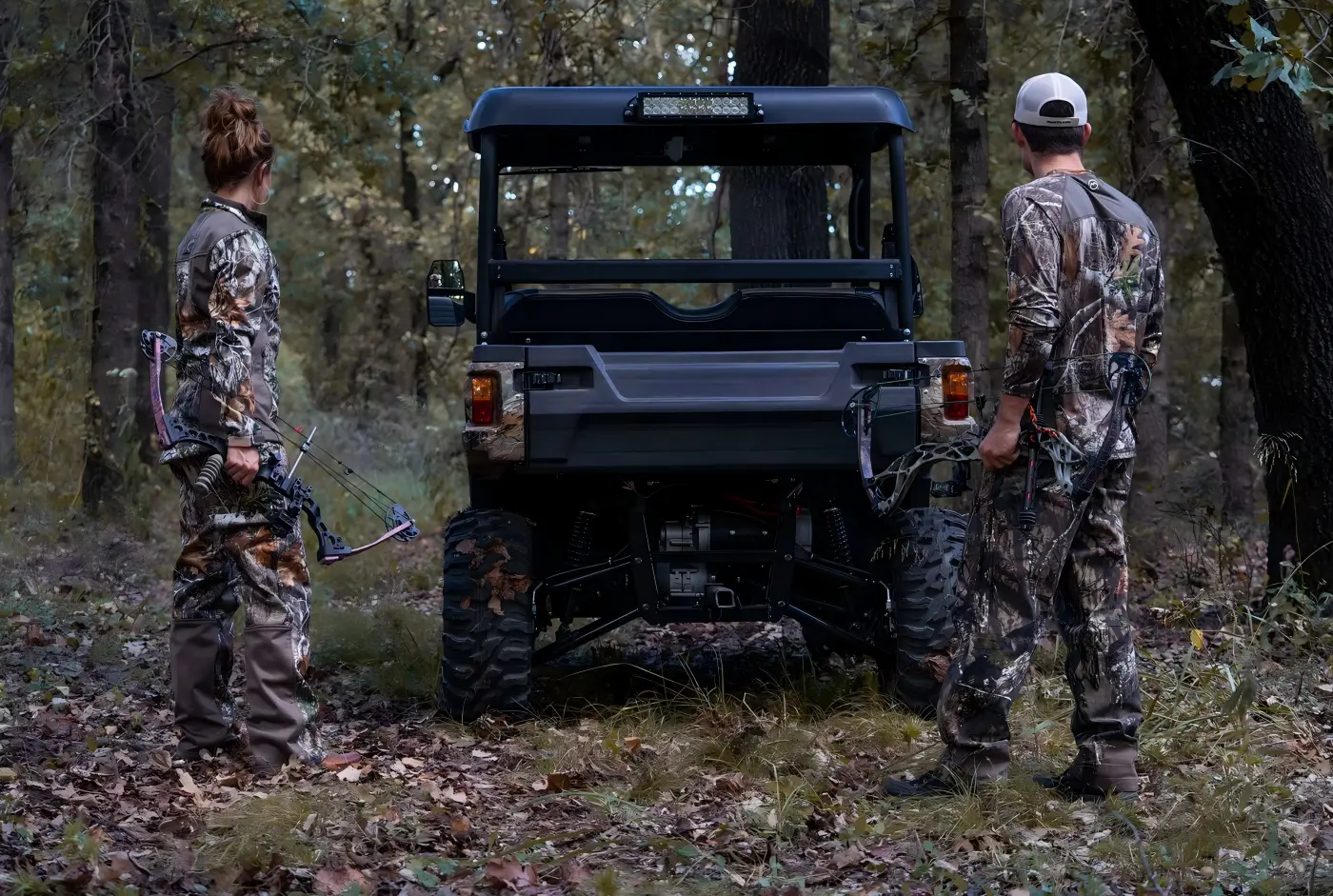

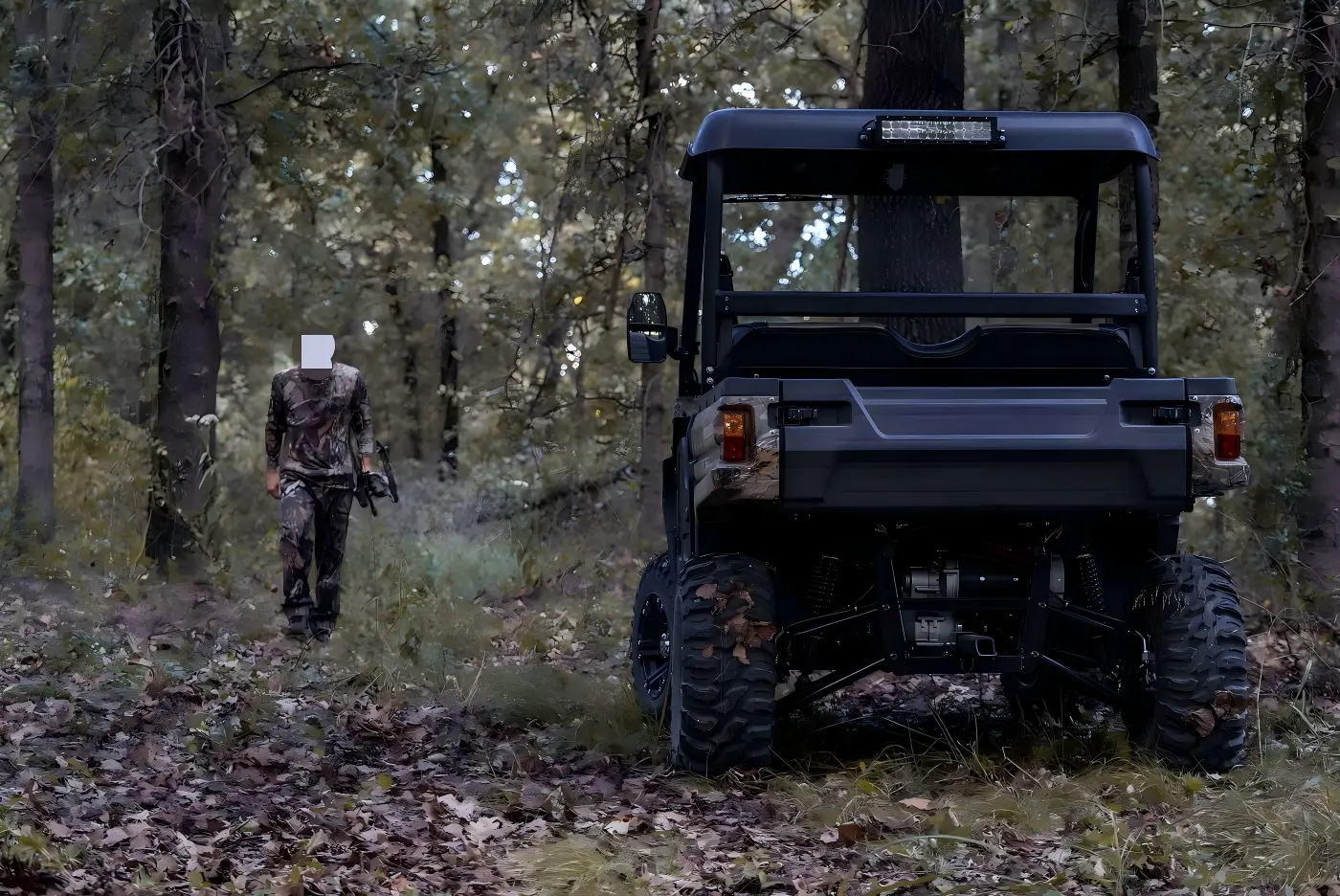

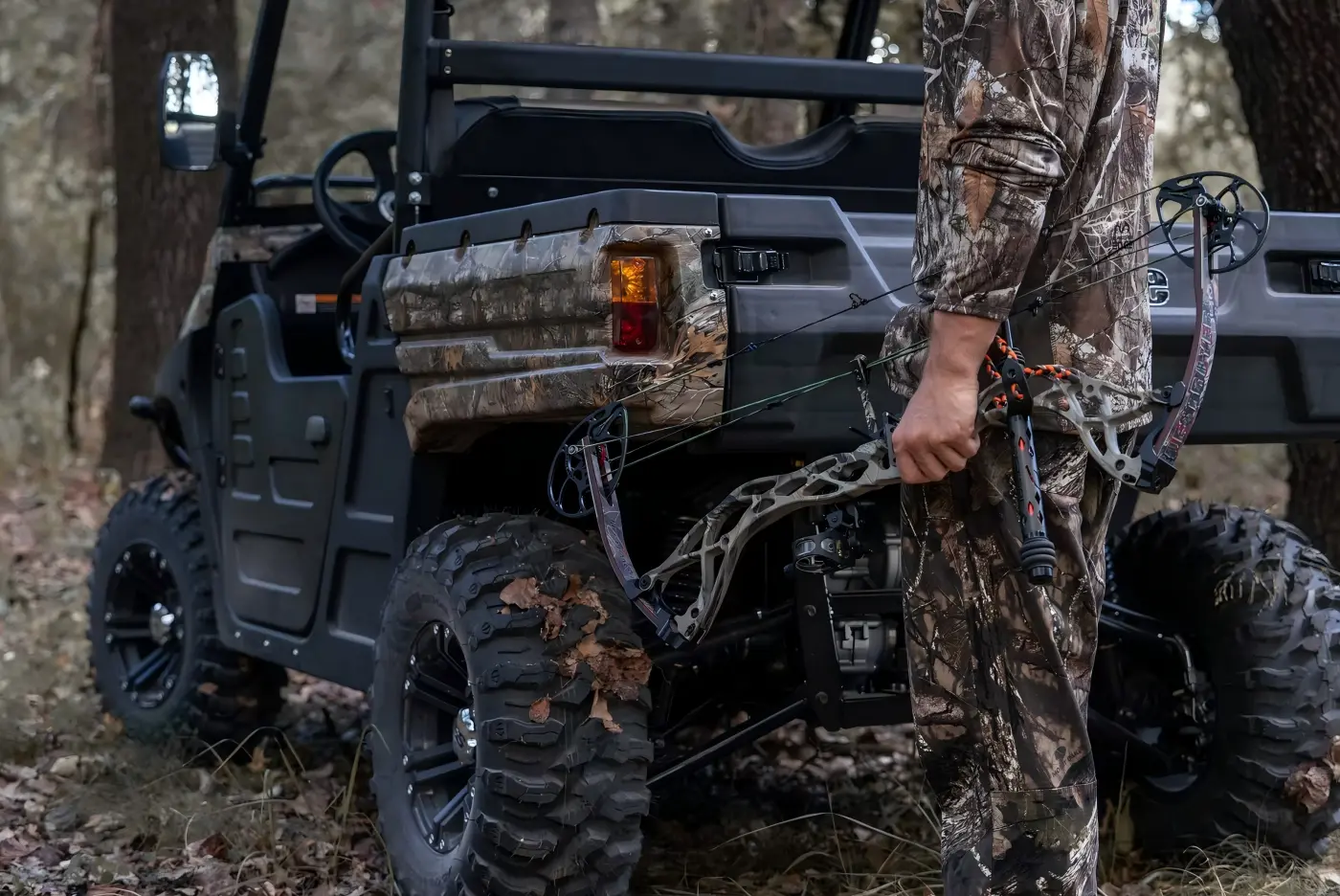

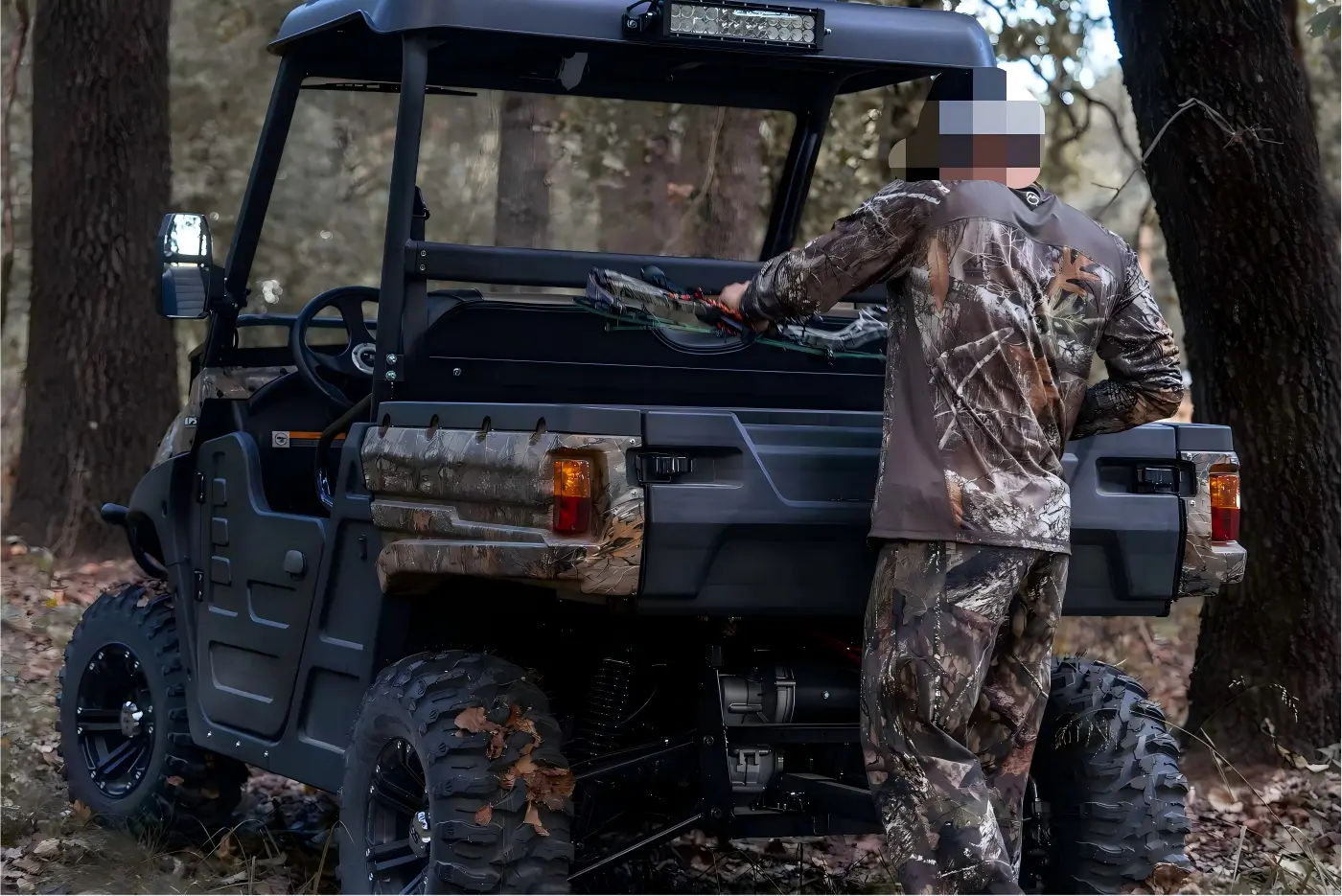

8.4 Outdoor hunting and cultural tourism supporting services
Professional hunting camps, outdoor bases and cultural and tourism scenic spots require vehicles to complete equipment transfer, prey recovery, customer connection, site patrol inspection, etc., with complex use scenarios and variable operation hours.
Shaft drive UTV has stable power, comfortable driving and riding, no fear of changeable weather and complex road conditions, can guarantee site operation around the clock, avoid equipment failure affecting service progress, and is a high-quality choice for outdoor commercial service.
8.5 Other suitable industries
In addition to the core industries, the equipment is also widely suitable for light auxiliary operations in mines, snow removal operation and maintenance in winter, wildlife monitoring, property management and protection in large parks, etc. All scenarios with high frequency, heavy load and harsh environment operations can give full play to their core advantages.
Guide to the purchase of 800 cc UTV with heavy-duty shaft transmission: 7 core configurations must be seen
When choosing a professional heavy-duty 800 cc gasoline shaft drive UTV, you can’t just look at the displacement, but the core depends on the hardware configuration suitable for heavy-duty operation.The following 7 key parameters directly determine the durability, practicability and long-term use value of the vehicle, so be sure to check them when purchasing.
9.1 Hard core transmission and variable speed system
Full shaft drive final drive + enclosed gear differential configuration is preferred, and both front and rear wheels are equipped with sealed differential to eliminate power loss.At the same time, it is equipped with CVT gearbox with heat dissipation design, which gives consideration to the smoothness of gear change and standby protection, supports 2 WD/4 WD switching and differential lock function, and improves the ability to get out of trouble under complex road conditions.
9.2 Powerful engine and cooling system
Water-cooled V-type double-cylinder 800 cc gasoline engine is preferred, with horsepower of 50 – 65 hp. Focus on low-speed torque parameters to ensure sufficient power for heavy load starting and climbing.Equipped with electronic fuel injection system, smooth cold start, high altitude adaptability.At the same time, it is equipped with an enlarged radiator to avoid high temperature failure during long-term heavy-duty operation.
9.3 Super high load and towing capacity
Professional heavy-duty models are required to meet 1,000 – 1,500 pounds or more of towing capacity, with a reinforced trailer interface and a high-strength cargo box.The container is provided with multiple groups of fixing buckles, which can stably load materials and equipment. The frame is integrally reinforced, and can bear heavy load impact for a long time without deformation.
9.4 Professional suspension and pass-through configuration
With double A-arm independent suspension structure and adjustable damping shock absorber, the bumpy road surface filtration is better and the heavy-load driving is more stable.Minimum ground clearance of 10 – 13 inches or more, with reinforced axles and high-strength CV joints for all-terrain travel.
9.5 Practical comfort
Priority is given to electric powering steering (EPS), which greatly reduces steering force and reduces fatigue during long-term operation.Select 2 – 4 compliant seats according to requirements, support windshield, roof, closed cab installation, suitable for all-weather operation.The instrument panel shall be equipped with hour meter, oil temperature, water temperature, oil quantity and other accurate data display, so as to facilitate the control of maintenance cycle.
9.6 Safety braking configuration
The four-wheel system is equipped with hydraulic disc brakes, which have fast braking response and stable braking effect, and are not easy to brake failure during heavy load driving.Standard ROPS and reliable parking brake, which can be equipped with winch of more than 3500 pounds to meet emergency rescue needs and ensure operation safety in an all-round way.
9.7 Quality control and after-sales support
Select the mature models with the actual test cases of commercial vehicle fleet, and give priority to the products with 1 – 2 year warranty policy.At the same time, check the supply capacity of local dealer outlets and accessories. The maintenance of shaft drive system is professional, and the perfect after-sales system can greatly reduce the difficulty of later maintenance.
Professional maintenance guide for shaft drive UTV: low maintenance can also prolong service life
The shaft drive system is characterized by low maintenance and high stability, but it is not completely maintenance free.Scientific and standardized regular maintenance can completely eliminate hidden dangers, make the 800 cc UTV transmission system run stably for thousands of hours, and greatly prolong the service life of the whole vehicle.
10.1 Daily simple check before the car
Before each operation, check whether there is oil leakage in the transmission system, differential and gear box, and timely troubleshoot if oil stains are found.At the same time, check tire pressure, braking performance, coolant and engine oil level to ensure stable basic working condition.
Start the vehicle at idle speed, listen to the abnormal sound of transmission shaft and differential. Under normal condition, the vehicle shall run smoothly without noise. In case of abnormal sound and vibration, stop the vehicle immediately for inspection.
10.2 Standardize regular maintenance procedures
Gear oil replacement is the core maintenance project.Replace the gear oil every 50 – 100 hours during the first maintenance of the new car, and then replace it every 200 – 500 hours or annual cycle. 80 W-90 special hypoid gear oil is preferred.Warm up the vehicle before oil change to ensure better oil fluidity and thoroughly discharge the old oil and impurities.
Every 50 – 100 hours on the universal joint, bearing filling special grease, check whether there is a loose parts, card, kuang amount is too large, tighten or replace parts in a timely manner.
For vehicles equipped with CVT gearbox, dust and sundries in gearbox compartment shall be cleaned regularly, belt wear shall be checked, and replacement cycle shall be predicted in advance to avoid sudden failure.At the same time, regularly check the dust cover of the half shaft, and replace it immediately in case of damage to prevent the sand from invading and wearing the axle.
10.3 Seasonal and long-term storage maintenance
After heavy muddy and wading operations, it is necessary to thoroughly clean the vehicle chassis and transmission parts. It is prohibited to directly wash the sealing interface with high-pressure water gun to avoid damaging the sealing structure and causing water and sand inflow.
Before long-term idle storage, it is necessary to replace new gear oil, stabilize the fuel system, raise the suspended tires of the vehicle body to avoid long-term compression and deformation of tires.The moisture-proof and rust-proof treatment shall be carried out in the whole process, and the corrosion of components and deterioration of oil liquid during standing shall be avoided.
10.4 Predict and avoid common faults
The shaft drive system rarely fails, and the common problems are mostly caused by improper maintenance, including oil shortage and wear of universal joints and bearings, aging and oil leakage of differential seals, high temperature of the system caused by heat dissipation blockage, etc.Strictly follow the maintenance cycle, can effectively avoid 99% of the transmission failure.
FAQ (user high frequency answering questions)
Q1: Why is the shaft drive more suitable for heavy duty 800 cc UTV?
A: The shaft transmission adopts rigid gear transmission shaft closed structure, without belt slipping, aging and fracture problems, and the power output is constant under heavy load, high temperature and severe environment.At the same time, it has strong silt resistance, waterproof and dustproof ability and extremely low failure rate, which can effectively reduce the shutdown loss of operation, and is the optimal transmission scheme for heavy-duty commercial scenarios.
Q2: Are all 800 cc gasoline UTVs full shaft drive?
A: Not all of them.Most models on the market are “CVT belt speed + shaft drive final drive” hybrid structure, pure full shaft drive models are less.When purchasing heavy load, focus on whether to equip with reinforced enclosed gear differential, high-strength transmission shaft and solid core final drive structure, which can meet the heavy load demand.
Q3: How often should the shaft drive system be maintained?
A: Core maintenance is gear oil replacement, with 50 – 100 hours for the first maintenance and 200 – 500 hours or once a year for the subsequent maintenance.Cardan joints, bearings, regular grease inspection, maintenance frequency is far lower than the belt, chain drive system.
Q4: Shaft drive models cost more to buy. Is it worth starting?
A: for commercial, heavy duty, high frequency user, it’s definitely worth it.In long-term use, can save a lot of belt replacement, chain maintenance, fault maintenance costs, while avoiding downtime losses, 1 – 2 operating season can recover the car price difference.For those who only ride occasionally for leisure, the belt-driven model is more cost-effective.
Q5: Can the shaft drive UTV cope with extreme conditions of deep water and mud?
A: yes.The closed sealing structure can effectively prevent water and silt from invading the core transmission components, and the protection performance is far superior to that of open belt and chain transmission.However, long-time and ultra-deep wading shall be avoided, and the manufacturer’s wading depth standard shall be followed to protect the sealing structure.
Q6: Shaft drive or belt drive has lower power consumption?
A: Theoretically, there is slight mechanical loss in the shaft drive gear structure, but under the heavy load condition, the slipping loss and thermal attenuation loss of belt drive are far greater than the mechanical loss.Comprehensive practical work efficiency, the effective power output of the shaft drive is stronger and more stable.
Conclusion
For professional vehicles such as the 800 cc gasoline UTV, which focuses on heavy duty operations, the shaft drive system is a key configuration to improve core performance, reduce operating costs and ensure operational efficiency.It thoroughly solves the industrial pain points of belt transmission failure and chain transmission maintenance. With constant power, ultra-high durability and minimal maintenance mode, it is suitable for full-scene heavy-load operation such as agriculture, forestry, engineering and outdoor commercial use.
Belt drive wins in leisure, smooth, high cost performance, chain drive wins in lightweight and flexible, and the core advantage of shaft drive is stable, reliable, non-stop, which is the core demand of professional operation users.
When purchasing 800 cc heavy-duty UTV, there is no need to blindly pursue high-configuration fancy functions, focusing on the four core dimensions of shaft transmission system configuration, power cooling, load passing performance and after-sales guarantee.With standardized regular maintenance, the vehicle can realize thousands of hours of stable operation and become a long-term reliable production tool.
If your UTV usage scenario is dominated by heavy load, high frequency and harsh environment operation, shaft drive 800 cc gasoline UTV is definitely the best choice for both long-term value and practical performance.
